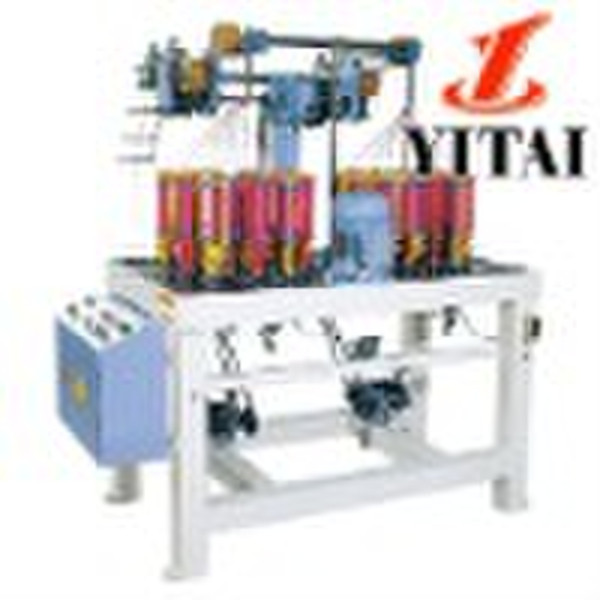

YTS 2/40 High speed YTS 2/40 braiding machine/lac

1.Product name: YTS 2/40 High speed YTS 2/40 braiding machine/Rope braiding machine/lace braiding machine. 2.Braing machine function: The braiding machine mainly produce rope, cord, like shoe lace, pull tape,etc. elastic and unelastic. 3.Braing machine features: 1) Adopt the advanced way of frequency conversion re-gulation and control , apt to control rotational speed. 2).And in the braiding spindle qualify for the next round of competitions some office device hang industry of entering ect. 3). Replace the punching type operation with porcelain eyes(alumina) , operate simple and easily when changing the line . 4).The applicable raw materials are also very wide . material shelf automatically , no matter what size is the warp-heart or break the line , the machine will stop turning round automatically. 5).Reliable, perfect and high-efficient post-sale service. 6).Full-year parts warranty and rapid supply. 7).Free-charge technical training. 8).With CE certification.4.Braing machine technical parameters: ModelYTS 4/16YTS 4/9YTS 2/24YTS 2/40YTS 1/48YTS 4/13YTS 4/17Heads4422144Spindles per head1692440481317Speed of horn gear(rpm)360360360360360360360Motor1 HP1 HP1 HP2 HP1 HP1 HP1 HPBobbin dimension (mm)48x14048x14048x14048x14048x14048x14048x140
